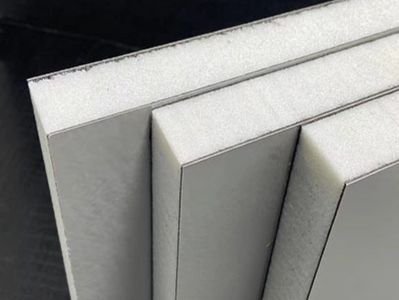

CFRT PET core sandwich panel
Description
The CFRT PET Sandwich Panel is a lightweight thermoplastic PET foam structure produced through a hot-melting process. The surface features continuous fiber-reinforced PET resin laminate sheets (0°/90° multi-layer composite) for reinforcement. It can also be combined with PET, PVC, or metal films.
Application
Construction, caravan, truck or refrigerated truck body, boat/home furniture, etc.
PRODUCT SPECIFICATION
- Thickness: Customised from 10mm~100mm
- Length: standard 2440mm, or customised
- Width: standard 1220mm, maximum 2800mm
- Core Material: PET Foam
- Thermal conductivity: 0.028W/M.K (typical)
- Surface Color: Natural/ black and other colors can be customized.
- Surface film: HUV-PET film/Non-woven fabric can be attached
FEATURES
- Lightweight
- High strength and good stiffness
- Impact-resistant, effectively reducing damage in case of collision
- Waterproof
- Corrosion-resistant, acid and alkali resistance, surface aging resistance of over 7 years
- Recyclable and environmentally friendly
- High insulation, with a thermal conductivity of only 0.028W/M.K (typical)
- Easy to use nail, screw for fixation
